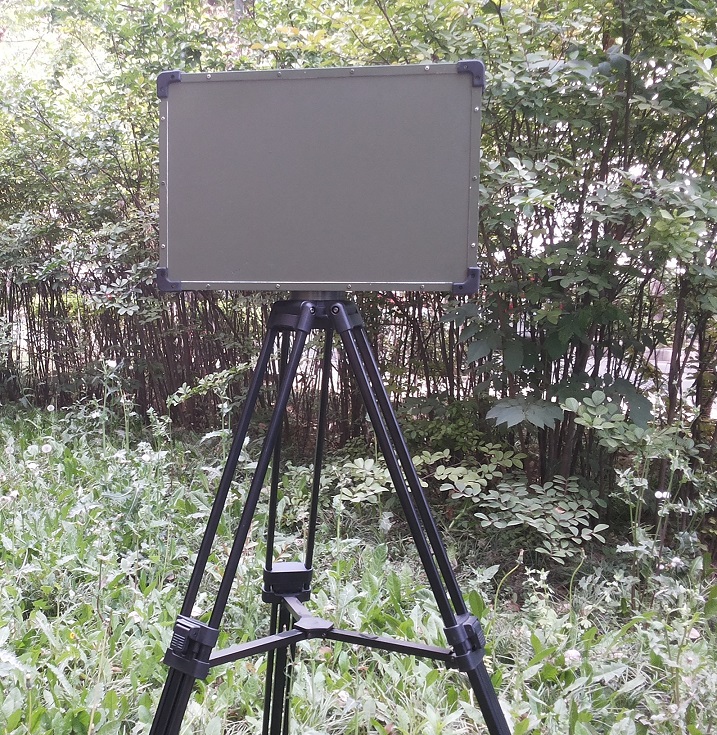

FD-2 Medium-range（5km）security surveillance radar
- Brand: ???
- Type: ???FD-2
FD-2 radar is a portable and multipurpose surveillance radar system. FD-2 radar has the advantages of small volume, light weight, high reliability, low price, small detection blind area, high distance resolution,
low probability of intercept, no velocity blind spots and excellent anti-jamming performance. With the Ethernet interface, wireless data transmission interface, positioning system and electronic map background, FD-2 radar can exchange information with other devices such as photoelectric system.
Application field：
- FMCW technology is used
- Battlefield surveillance, investigation
- Oil pipeline and oil filed protection
- Airport security, area protection
- Border monitoring, Homeland Security
- Boundary monitoring
- Personnel protection
- Dam and reservoir monitoring
- Compatible with the existing security video system
Main features：
- Light weight, Compact radar
- Manual handing or vehicle
mounted mobile application
- Detecting moving vehicles and personnel
- Low emission power
- All-weather 24 hours of work
- Strong rejection to ground clutter, Low false alarm rate
- Applicable to all kinds of terrain.
Main index：
Frequency: Ka band
Detection Range: personnel: 5Km; light vehicles: 10Km;
Accuracy: distance 10m/ azimuth angle 0.4 deg.
Antenna search scope: fan area or 360 degrees search
Power output: 10 mW, 100 mW, 1 W Controllable
Search speed: 6 degrees /s, 12 degrees /s, 24 degrees /s
Power consumption: DC 24V = 40 W
Radar Front end unit: 410 x 330 x 90 mm
Radar terminal unit: 270 x 220 x 60 mm
